APPLICATIONS
Freestyle mounting base
Ideal for hooping sleeves and small items.
Requires:
or
HoopMaster Standard Station (16" wide)
Great for large central designs on hoodies, t-shirts and jacket backs, as well as left and right pocket embroidery.
Requires:
or
HoopMaster Medium Station (12.8" wide)
For central designs on children's clothing.
Requires:
or

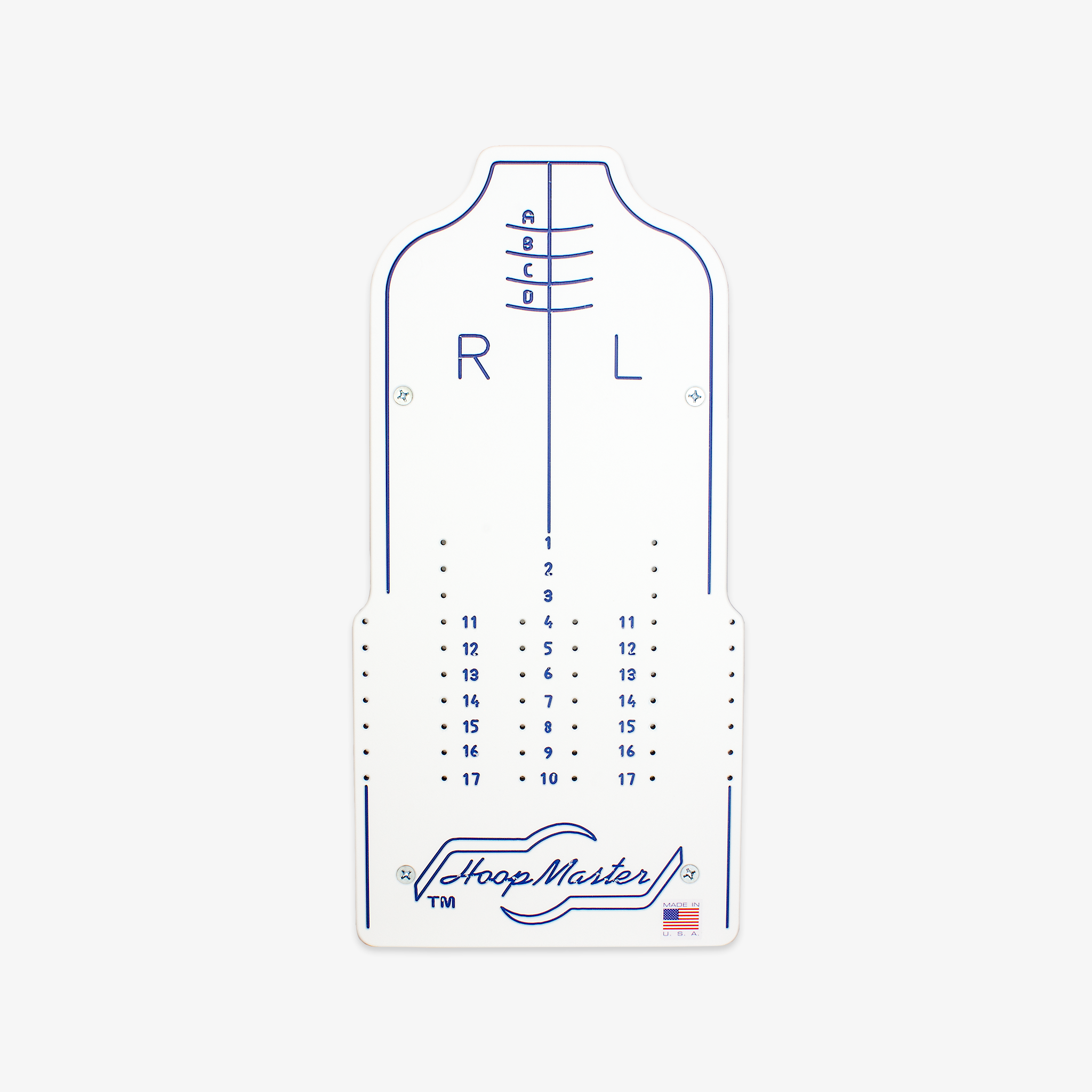

HoopMaster Infant Station (8.5" wide)
For central designs on infant and toddler clothing.
To use the Infant Station with your Mighty Hoops, you require:

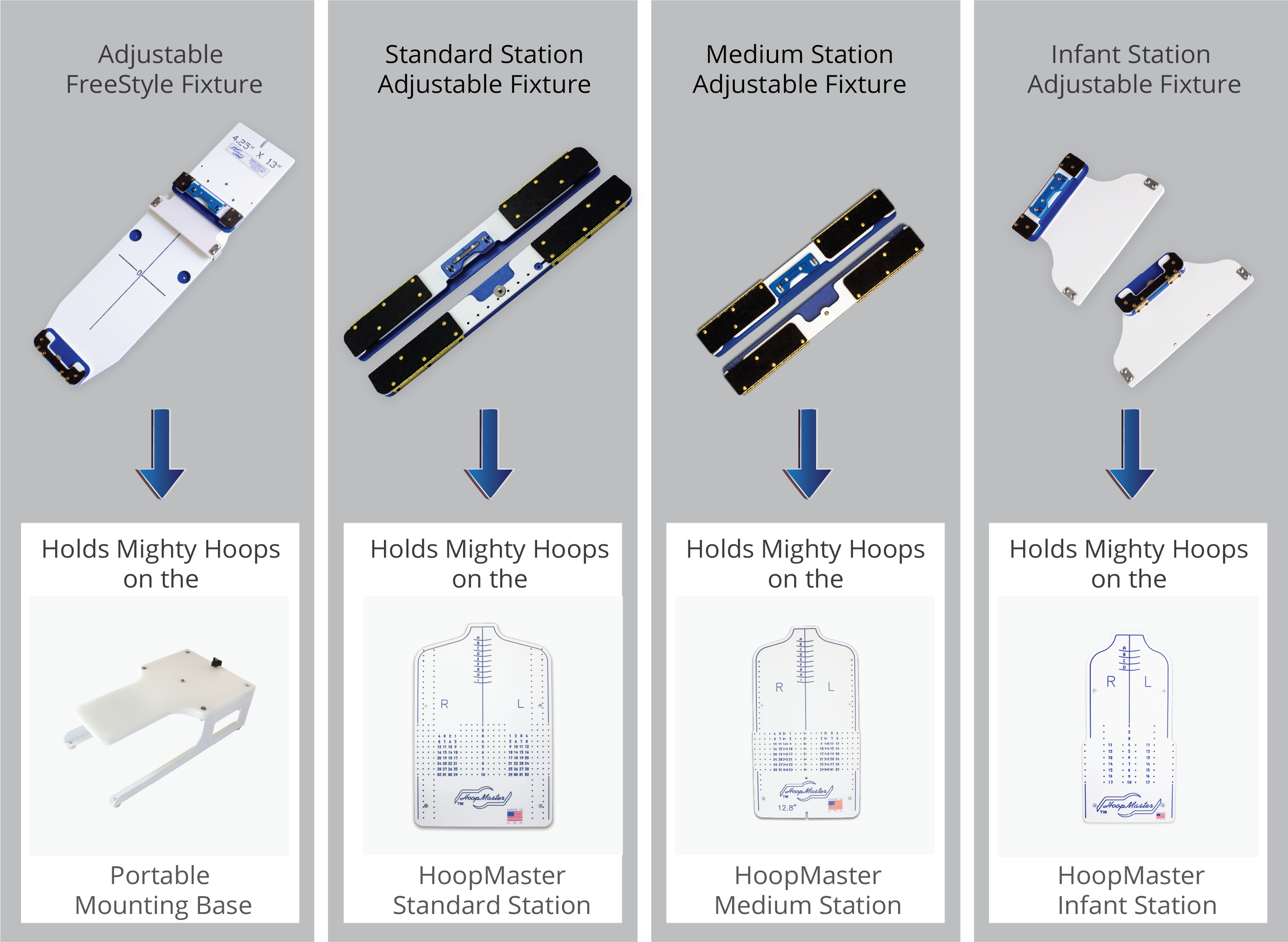

Adjustable fixtures for each station
how to use the freestyle adjustable fixture
USE WITH THE FREESTYLE MOUNTING BASE
The FreeStyle Adjustable Fixture allows you to use Mighty Hoops on the FreeStyle Mounting Base (sold separately).
You cannot use this fixture without the FreeStlyle Mounting Base.
ADAPTER WITH FIXTURE BOARD
The fixture consists of 2 parts. The small piece is known as the adapter, and can slide up and down the fixture board to accommodate different hoop heights.
Before mounting the fixture, slide the adapter over the fixture board.
Mounting the fixture
With the adapter on the fixture board, slide the fixture in place over the screw on the FreeStyle Mounting Base. Tighten the black wingnut.
You can now proceed to place your Mighty hoop's bottom ring on the fixture. Adjust the adapter to the correct height and tighten the thumbscrews to the underside of the fixture.
adjustable
This fixture allows you to mount Mighty Hoops from the 4.25 x 4.25" to the 13 x 16" hoop size on the FreeStyle Mounting Base.
This setup is ideal for hooping sleeves and pant legs with small, narrow hoops. It is commonly referred to as the Adjustable Sleeve Fixture.
FreeStyle Adjustable Fixture Demonstration
This video demonstrates how to use the Freestyle Adjustable Fixture. See how to attach the fixture to a portable FreeStyle Mounting Base and how to adjust it to fit different hoop sizes.
how to use mighty hoop adjustable fixtures for standard and medium stations
use with stations
The HoopMaster stations are compatible with various Mighty Hoop sizes, but the Adjustable Fixture specifically enhances its versatility for larger hoops, up to 13" in height.
- Standard station (adult clothing) - Adjustable Fixture for Standard Station
- Medium station (children's clothing) - Adjustable Fixture for Medium Station
(Stations are sold separately.)
Mounting the fixture
The fixture consists of two parts. One part is mounted on to the station with a set of thumbscrews. This is usually used in the bottom position.
The black stabilizer clamps cover the thumbscrews when in the closed position.
easy installation
The other part of the fixture simply slides over the top of the station. Once you have reached the desired position, tighten the thumbscrews to the underside of the station.
ADJUSTABLE
The adjustable fixtures hold the bottom ring of Mighty Hoops securely in place. Use the black stabilizer clamps to keep the stabilizer from moving during the hooping process.
This setup is ideal for central placements on hoodies and t-shirts. Adjust the fixtures by moving them up or down to accommodate Mighty Hoops up to 13 x 16".
Best suited for larger hoops (6.5" and up).
how to use the Infant Station adjustable fixture
use with infant station
This fixture is designed for the Infant Station (sold separately).
Mounting the fixture
The fixture also consists of 2 parts. The wider part fits over the bottom of the station which is slightly wider.
Both parts simply slide on over the infant station, and is tightened with thumbscrews to the underside of the station.
Adjustable
Use the Infant Station Adjustable Fixture to hold Mighty Hoops from 4.25" up to 10" x 10" on the Infant Station.
The fixture is recommended for hoops 8" × 9” and under.

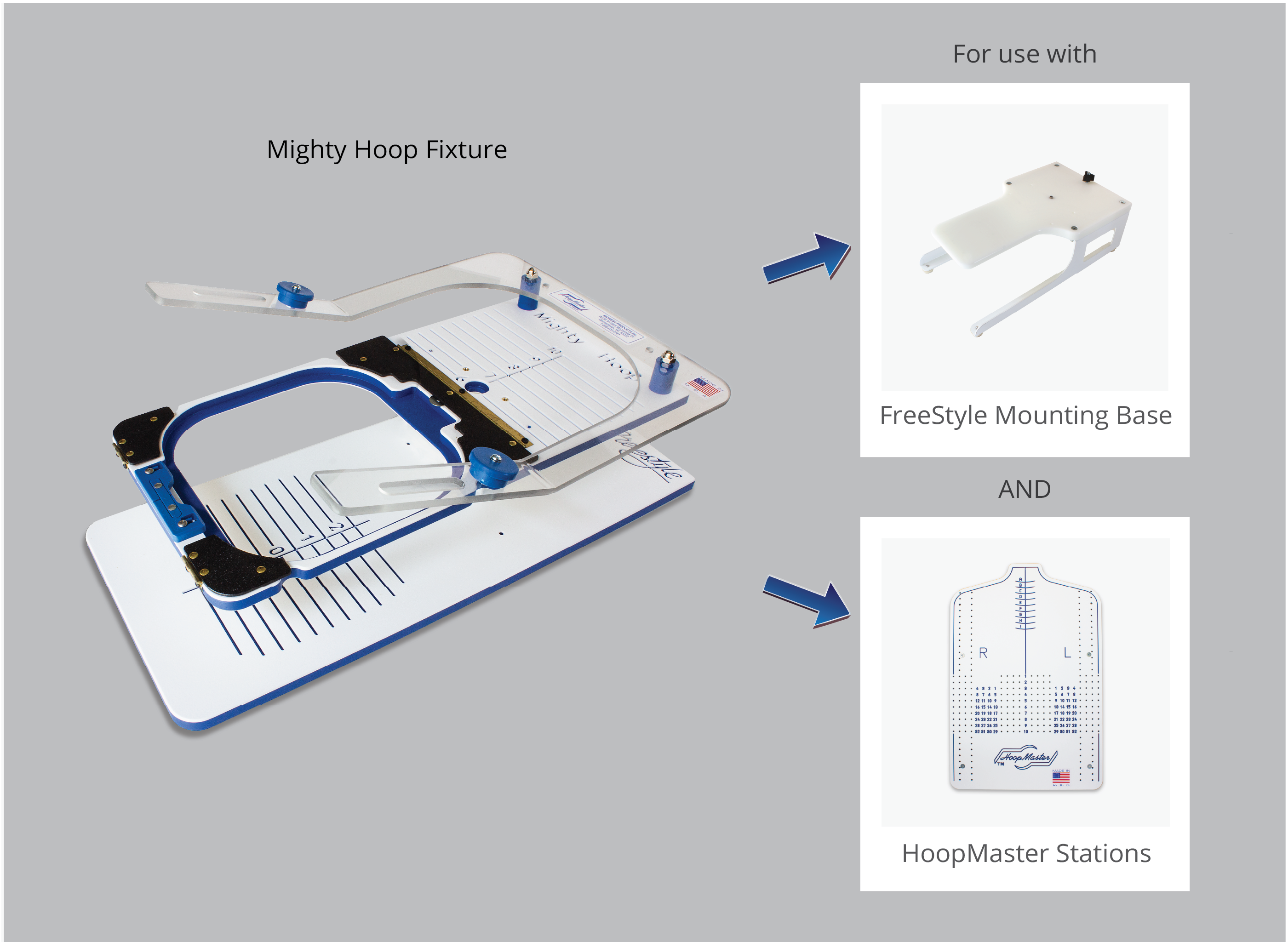

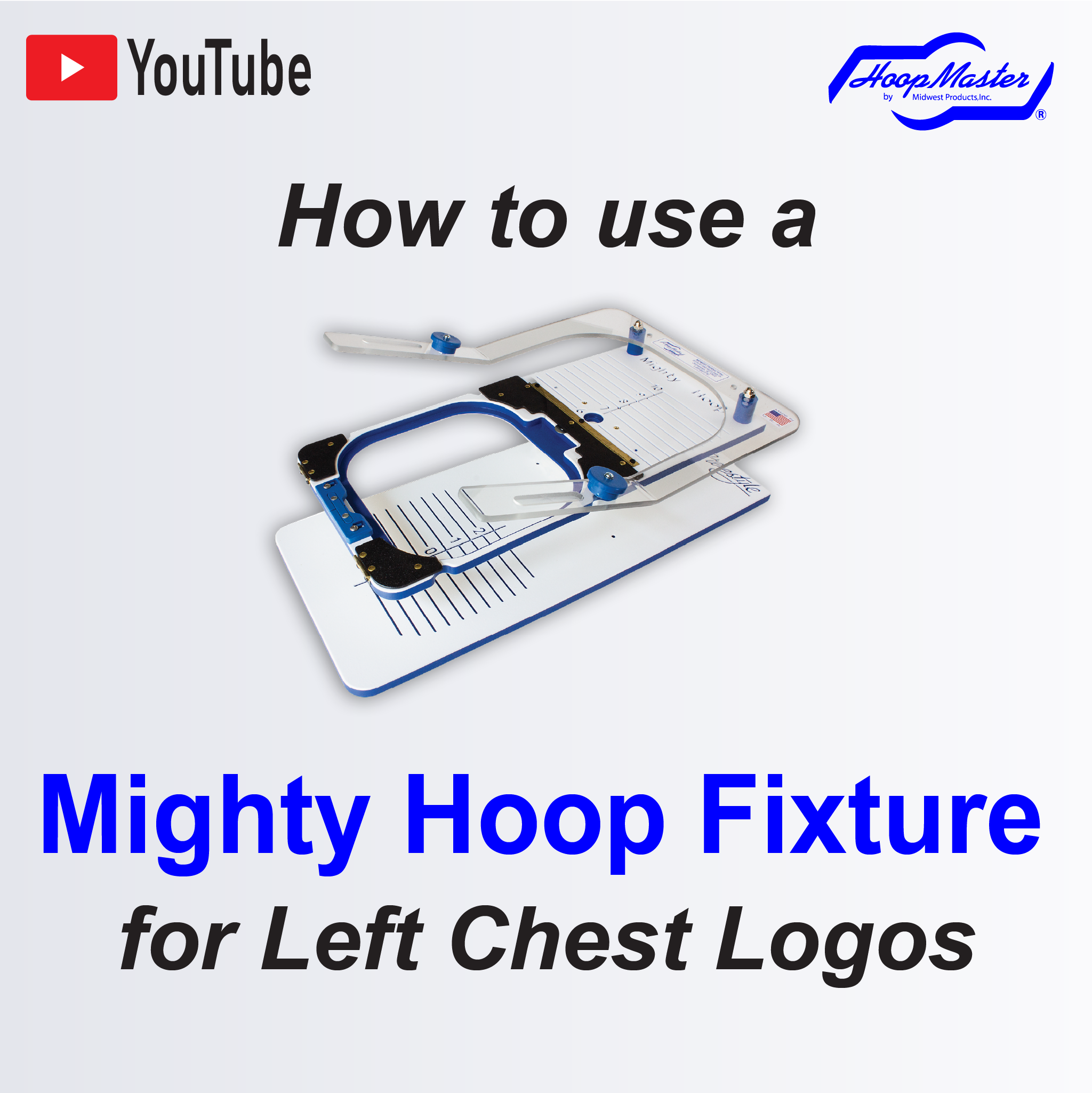

how to use mighty hoop fixtures (arm type) on the stations
FIXTURE WITH FREESTYLE ARM
Each Mighty Hoop Fixture is shipped together with it's FreeStyle arm. The FreeStyle arm is used to attach the fixture to the FreeStyle Mounting Base.
(The only exception is the 4.375" round hoop fixture. It ships without the arm as it is designed to work without it.)
Separating the fixture from the FreeStyle arm
Two pins on the back of this fixture are used to attached the fixture to the FreeStyle arm. They simply pull apart.
It is necessary to remove the FreeStyle arm when you want to mount the fixture on a HoopMaster Station.
Option 1: Mounting on a station
The two pins on the back of this fixture are designed for easy mounting on the HoopMaster Station. Select any set of holes to give you left, right or central positioning.
The FreeStyle Arm is not used when mounting the fixture on the stations.
Option 2: Mounting on FreeStyle Mounting Base
Slide the FreeStyle Arm over the screw on the base and tighten the black wingnut. The arm should also clip over the metal pin in the middle of the base, which will prevent sideways movement.
It is not necessary to separate the fixture from the arm to perform this step.
Hoop Specific
The Hoopmaster Fixtures are each designed for a specific hoop size. Select the fixture for the hoop size that you want to use.
The hoop brackets have no impact on the fixture. That means, the fixtures will work with brackets of any machine brand, as along as it is a Mighty Hoop of the same size as the fixture.
Stabilizer clamps
Place your stabilizer over the bottom ring and use the black tabs to firmly clamp down on the stabilizer. This will prevent your stabilizer from moving out of position while hooping your item.
Hooping
Once your item to be hooped is positioned over the bottom ring, place the top ring with brackets on the arms of the fixture.
Press down on the top hoop and let the magnets do the work. Your item will be instantly hooped between the two magnetic rings!
